A MIDI key interface for the Roland SH-2000 Synthesizer

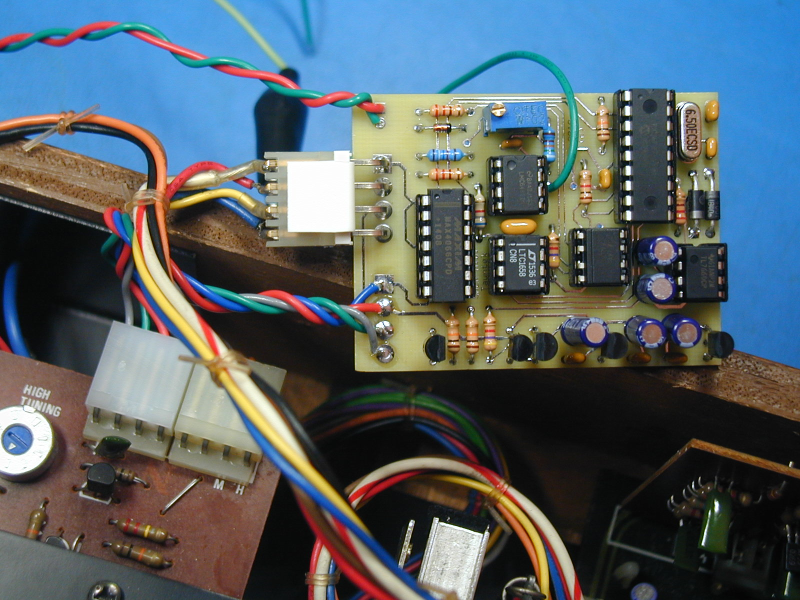

    Someone recently asked me if it was possible to add CV and gate inputs to the Roland SH-2000.   The keyboard is set up, not as a voltage divider, but rather a variable resistance between +15V and the keyboard pitch circuit input.  When the top key is pressed, the +15V supply is connected directly.   When the bottom key is pressed, it is connected through several hundred K ohms of resistance.   In addition, the oscillator has a Hz/volt response, not a V/octave one.  Any external MIDI to CV interface would need to be able to put out +15VDC to play the top key.  It seems that many devices of this type have 8VDC as their upper limit, so initially it did not look promising.   After some thought, I decided to design a custom MIDI interface that would meet the SH-2000's CV voltage range.  Here is how it looks:

   Note: This interface does not support control of the SH-2000's after-touch value.

    I used a PIC microcontroller to process the MIDI messages and control a 14-bit DAC.   The interface needs to be able to generate CV's up to and including +15VDC, which is tough to do considering that the supplies in the SH-2000 are +/-15V.  To address this, I regulated the +15V to get +9V, then used a voltage doubling chip to get approximately +18V.  This is high enough to allow generation of CV's up to 15V as needed.  A trimmer pot is used to set the correct DAC scaling for the SH-2000's oscillator.

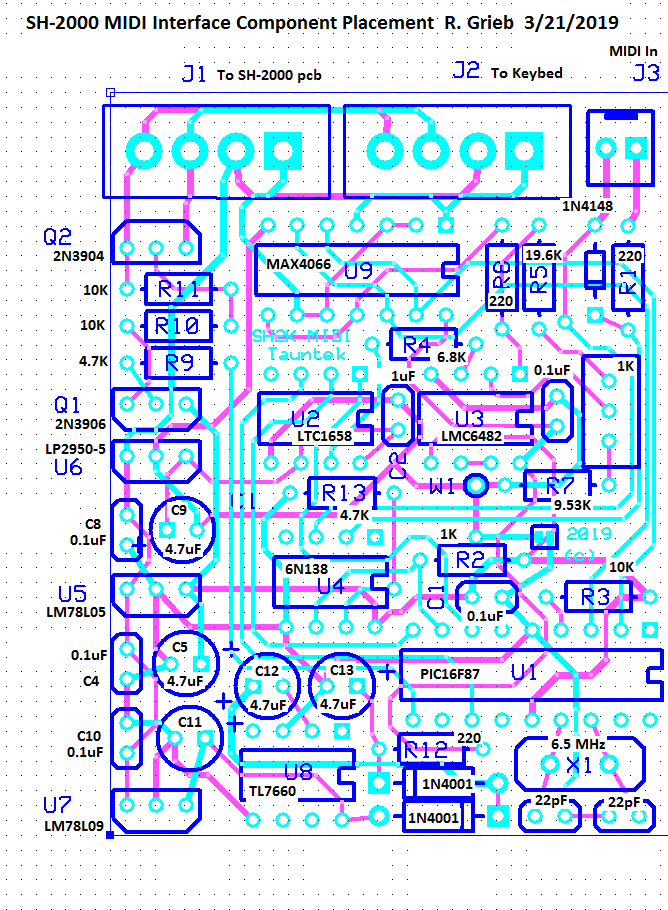

Here is the schematic of the interface, here is a parts list, and here is a component placement diagram for the pc board.

   The board was designed to sit vertically at the rear of the SH-2000, keeping the wires short.  The internal keybed unplugs from the SH-2000 and plugs onto my interface.   At power-up, the internal keybed is used.  If a MIDI Note On message is received, the interface switches control to the DAC, and captures the MIDI channel, which is used until power is cycled.   The 37-note MIDI range maps directly to the SH-2000 keys.   The SH-2000 transpose switch is applied after the oscillator, and functions normally in MIDI mode.

  Please note: Taking an SH-2000 apart and modifying it must be done very carefully, or damage to the unit could result.  It should only be attempted by someone familiar with this type of work.  I will not be responsible for any damage to any unit caused by either proper or improper use of the design offered here.
